水循環ポンプ、自動増圧ポンプ、循環ポンプ、循環ポンプ、ErPポンプ

モデル	DN(mm)	Rated Flow(m³/h)	Rated Head(m)	Max. Head(m)	Voltage(V)	Frequency(Hz)	Power(W)	Port-to-port length(mm)	Pipe connection/Flange
SPA 15-12E	15	0.6	8	12	220	50/60	60	140	G 3/4
Instant S 15-1.5	15	/	/	1.5	230	50/60	8	80	G1/2
Master SD 20-4	20	1.6	2	4	220~240	50/60	25	130	G1
Master SD 20-5	20	1.7	3.2	5	220~240	50/60	33	130	G1
Master SD 20-6	20	2	3.2	6	220~240	50/60	39	130	G1
Master SD 20-7	20	2.2	4	6	220~240	50/60	52	130	G1
Master SD 25-4	25	1.8	2	4	220~240	50/60	25	130/180	G1 1/2
Master SD 25-5	20	2	2.7	5	220~240	50/60	33	130/180	G1 1/2
Master SD 25-6	25	2	3.5	6	220~240	50/60	39	130/180	G1 1/2
Master SD 25-7	25	2.2	4	6	220~240	50/60	52	130/180	G1 1/2
Master SD 25-7.5	25	2.2	4.7	7.5	220~240	50/60	60	130/180	G1 1/2
Master SD 25-8	25	2.5	6.5	8	220~240	50/60	70	130/180	G1 1/2
Master SD 32-4	32	1.8	2	4	220~240	50/60	25	180	G2
Master SD 32-5	20	2	2.7	5	220~240	50/60	33	180	G2
Master SD 32-6	32	2	3.5	6	220~240	50/60	39	180	G2
Master SD 32-7	32	2.2	4	6	220~240	50/60	52	180	G2
Master D 20-4	20	1.6	2	4	220~240	50/60	25	130	G1
Master D 20-5	20	1.7	3.2	5	220~240	50/60	33	130	G1
Master D 20-6	20	2	3.2	6	220~240	50/60	39	130	G1
Classic S 32-5	32	2	2.4	5	230	50/60	32	180	G2
Master D 20-7	20	2.2	4	7	220~240	50/60	52	130	G1
Instant 15-1.5	15	/	/	1.5	230	50/60	5	80	G1/2
Master D 20-7.5	20	2.2	4.5	7.5	220~240	50/60	60	130	G1
Master D 20-8	20	2.2	5.5	8	220~240	50/60	70	130	G1
Master D 25-4	25	1.8	2	4	220~240	50/60	25	130/180	G1 1/2
Master D 25-5	25	2.2	4.7	7.5	220~240	50/60	33	130/180	G1 1/2
Master D 25-6	25	2	3.5	6	220~240	50/60	39	130/180	G1 1/2
Master D 25-7	25	2.2	4	7	220~240	50/60	52	130/180	G1 1/2
Master D 25-7.5	25	2.2	4.7	7.5	220~240	50/60	60	130/180	G1 1/2

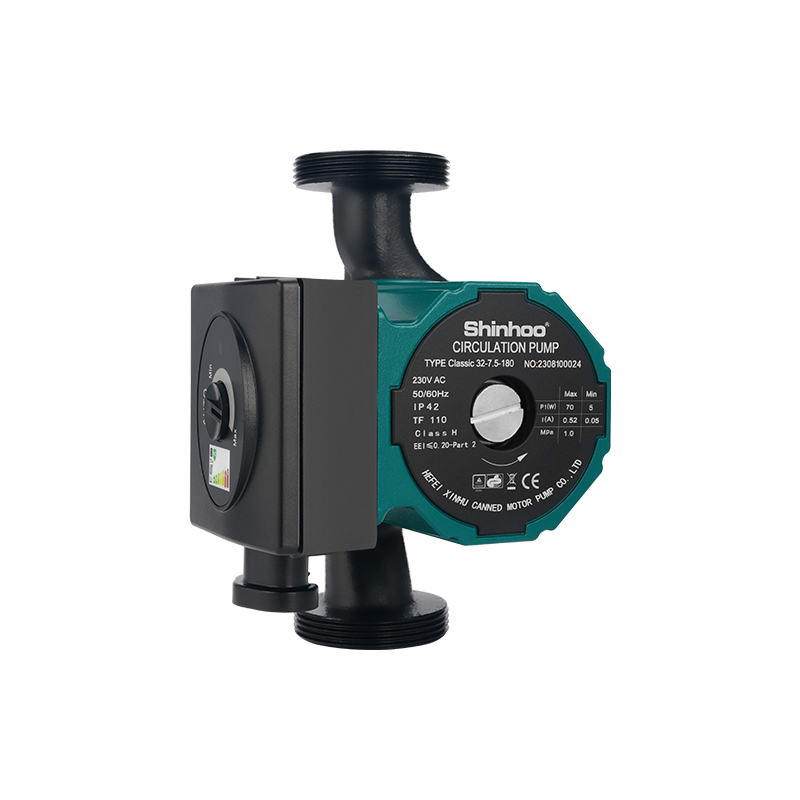

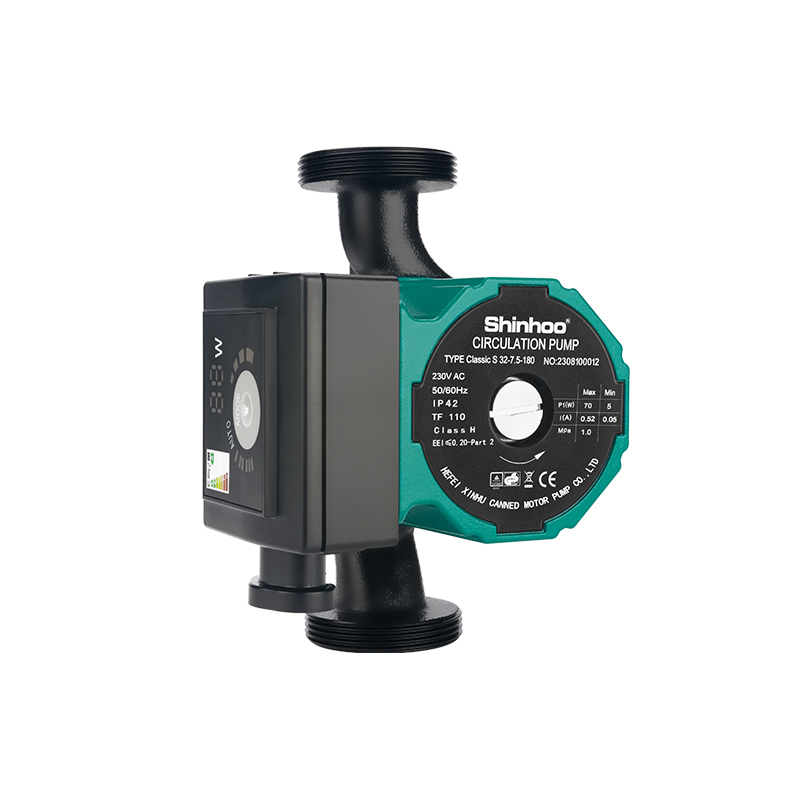

Classic S 32-7.5	32	2.5	4.5	7.5	230	50/60	70	180	G2
