| 写真 | モデル | DN(mm) | Rated Flow(m³/h) | Rated Head(m) | Max. Head(m) | Voltage(V) | Frequency(Hz) | Power(W) | Port-to-port length(mm) | Pipe connection/Flange |
|---|---|---|---|---|---|---|---|---|---|---|
 |
GPA15-5 III U Z107 | 15 | 1 | 3.5 | 5 | 220~240 | 50/60 | 33 | 158 | DN15 |
|
GPA15-5 III U Z108 | 15 | 1 | 3.5 | 5 | 220~240 | 50/60 | 33 | 158 | DN15 |
 |
GPA15-6 III U Z108 | 15 | 1 | 4 | 6 | 220~240 | 50/60 | 39 | 158 | DN15 |
 |
GPA15-7 III U Z108 | 15 | 1 | 5.5 | 7 | 220~240 | 50/60 | 52 | 158 | DN15 |
 |

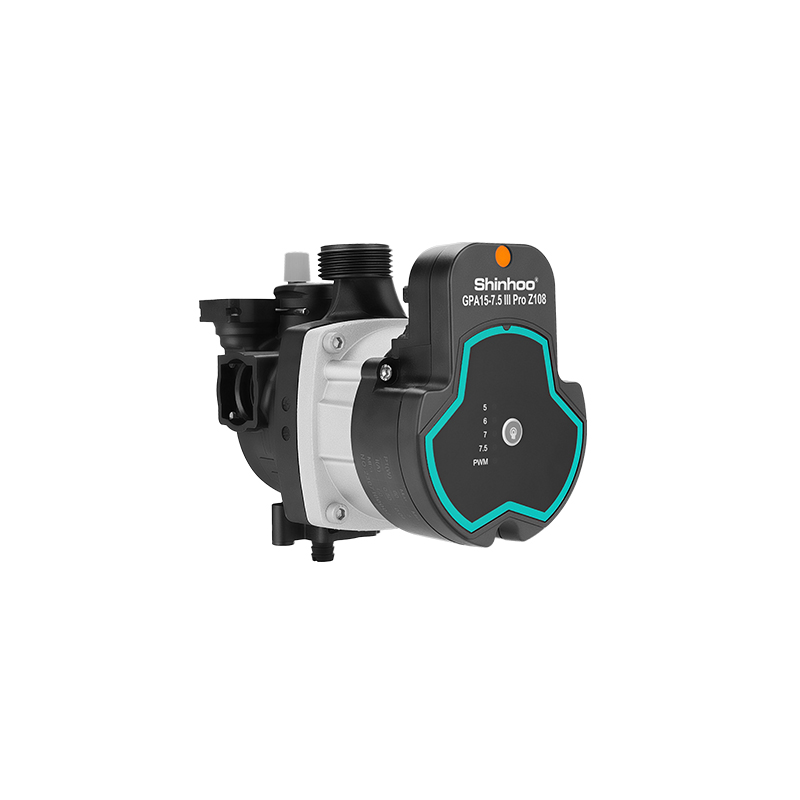

GPA15-7.5 III U Z108 | 15 | 1 | 6.5 | 7.5 | 220~240 | 50/60 | 60 | 158 | DN15 |
 |
GPA15-5 III U Z107 | 15 | 1 | 3.5 | 5 | 220~240 | 50/60 | 33 | 158 | DN15 |
 |
GPA15-7 III U Z107 | 15 | 1 | 5.5 | 7 | 220~240 | 50/60 | 52 | 158 | DN15 |
 |
GPA15-6 III U Z107 | 15 | 1 | 4 | 6 | 220~240 | 50/60 | 39 | 158 | DN15 |
 |
GPA15-7.5 III U Z107 | 15 | 1 | 6.5 | 7.5 | 220~240 | 50/60 | 60 | 158 | DN15 |
 |
GPA III Pro Z197 | 15 | 1 | 6 | 7.5 | 230 | 50/60 | 60 | / | / |
|
GPA III Pro Z107 | 15 | 1 | 6 | 7.5 | 230 | 50/60 | 60 | / | / |
|
GPA III Pro Z107 | 15 | 1 | 6 | 7.5 | 230 | 50/60 | 60 | / | / |
 |
GPA III Pro Z178 | 15 | 1 | 6 | 7.5 | 230 | 50/60 | 60 | / | / |
 |
GPA III Pro Z106 | 15 | 1 | 6 | 7.5 | 230 | 50/60 | 60 | / | / |
 |
GPA III Pro Z027 | 15 | 1 | 6 | 7 | 230 | 50/60 | 60 | / | / |
 |
GPA III Pro Z108 | 15 | 1 | 6 | 7.5 | 230 | 50/60 | 60 | / | / |
 |
Z178 | 15 | 2 | 4 | 7 | 230 | 50 | 32/40/55/90 | / | / |
 |
Z108 | 15 | 2 | 4 | 7 | 230 | 50 | 32/40/55/90 | / | / |
 |
Z106 | 15 | 2 | 4 | 6.5 | 230 | 50 | 32/40/55/90 | / | / |
 |
Z027 | 15 | 2 | 4 | 7 | 230 | 50 | 32/40/55/90 | / | / |
