従来のキャンドモーターポンプ、漏れがなく、軸シールがなく、コンパクト設計で低騒音、低振動、年間生産数400万個。
| 写真 | モデル | DN(mm) | Rated Flow(m³/h) | Rated Head(m) | Max. Head(m) | Voltage(V) | Frequency(Hz) | Power(W) | Port-to-port length(mm) | Pipe connection/Flange |
|---|---|---|---|---|---|---|---|---|---|---|
 |
Mega 25-10 | 25 | 5 | 6.5 | 10 | 230 | 50/60 | 185 | 180 | G1 1/2 |
 |
Mega 25-8 | 25 | 4 | 5.5 | 8 | 230 | 50/60 | 130 | 180 | G1 1/2 |
 |
Mega 25-6 | 25 | 4 | 3.5 | 6 | 230 | 50/60 | 90 | 180 | G1 1/2 |
 |

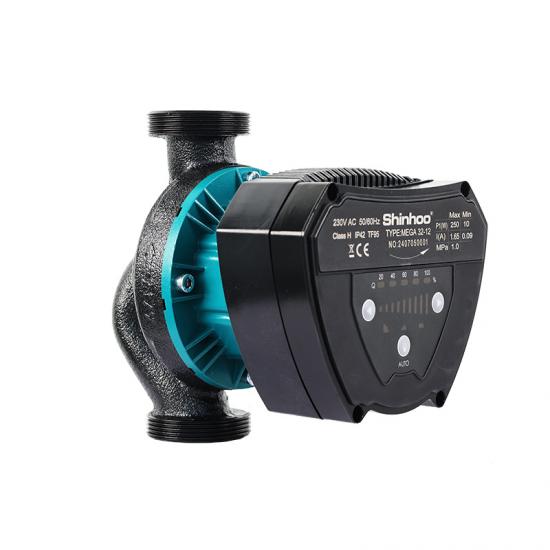

Mega 25-12 | 25 | 5.5 | 7.5 | 12 | 220~240 | 50/60 | 230 | 180 | DN25 |
 |
Mega S 50-15F | 50 | 20 | 7 | 15 | 220~240 | 50/60 | 680 | 280 | /Flange |
|
Mega S 50-12F | 50 | 29 | 6.5 | 12 | 220~240 | 50/60 | 600 | 280 | /Flange |
|
Mega S 50-10F | 50 | 16.5 | 5.5 | 10 | 220~240 | 50/60 | 480 | 280 | /Flange |
|
Mega 32-12 | 25 | 5.5 | 7.5 | 12 | 220~240 | 50/60 | 230 | 180 | DN25 |
 |
Mega S 40-20F | 40 | 15.8 | 10.8 | 20 | 230 | 50/60 | 750 | 377 | DN40/Flange |
 |
Mega 40-12F | 40 | 6 | 6.5 | 12 | 230 | 50/60 | 250 | 220 | /Flange |
|
Mega S 50-18F | 50 | 20 | 7.6 | 18 | 230 | 50/60 | 750 | 280 | /Flange |
 |
Mega 40-10F | 40 | 5 | 6 | 10 | 230 | 50/60 | 185 | 220 | /Flange |
|
Mega S 65-10F | 65 | 23 | 6.5 | 5 | 220~240 | 50/60 | 700 | 250 | /Flange |
|
Mega S 65-8F | 65 | 23 | 6.5 | 5 | 220~240 | 50/60 | 500 | 250 | /Flange |
 |
Mega S 80-8F | 80 | 37 | 5 | 8 | 230 | 50/60 | 750 | 391 | DN80/Flange |
|
Mega S 65-12F | 65 | 25 | 6.5 | 12 | 230 | 50/60 | 750 | 340 | /Flange |
 |
Classic E 20-6 | 20 | 2 | 3 | 6 | 230 | 50/60 | 45 | 130 | G1 |
 |
Mega 32-6 | 32 | 4 | 3.5 | 6 | 230 | 50/60 | 90 | 180 | G2 |
 |
Mega 32-8 | 32 | 4 | 5.5 | 8 | 230 | 50/60 | 130 | 180 | G2 |
 |
Classic S 32-4 | 32 | 1.7 | 2 | 4 | 230 | 50/60 | 22 | 180 | G2 |
 |
Classic S 20-5 | 20 | 1.5 | 2.7 | 5 | 230 | 50/60 | 32 | 130 | G1 |
 |
Mega 32-10 | 32 | 5.5 | 5.5 | 10 | 230 | 50/60 | 185 | 180 | G2 |
 |
Mega 40-6F | 40 | 4 | 3.7 | 6 | 230 | 50/60 | 90 | 220 | /Flange |
 |
Mega 40-8F | 40 | 5 | 4.2 | 8 | 230 | 50/60 | 130 | 220 | /Flange |
 |
Master H 20-6 | 20 | 2 | 3.2 | 6 | 220~240 | 50/60 | 39 | 130 | G 1 |
 |
Master H 25-6 | 25 | 2 | 3.3 | 6 | 220~240 | 50/60 | 39 | 130/180 | G 1 1/2 |
 |
Master H 32-6 | 32 | 2 | 3.2 | 6 | 220~240 | 50/60 | 39 | 180 | G 2 |
 |
Master H 20-7 | 20 | 2.2 | 3.6 | 7 | 220~240 | 50/60 | 52 | 130 | G 1 |
 |
Master H 25-7 | 25 | 2.2 | 3.8 | 7 | 220~240 | 50/60 | 52 | 130/180 | G 1 1/2 |
 |
Master H 32-7 | 32 | 2.2 | 3.2 | 7 | 220~240 | 50/60 | 52 | 180 | G 2 |
